Plastic molded SMD tuning fork crystal of heat-resistance.
High precision and tight frequency stabiity.
Ultra thin type with height 1.4mm Max.
High reilable environmental performance.
Automatic mounting and reflow soldering.
Applications: PC, Gaming equipment, Radio communications, Smart grid, Small communication device, etc.
RoHS Compliant.
Specifications:
Item /Type
7M (32.768kHz SMD Crystal Resonator)
Frequency Range
32.768kHz
Load Capacitance
12.5pF, or specify
Drivel Level
1.0μW Max.
Frequency Tolerance
±20ppm, or specify
Series Resistance
65KΩ Max.
Turnover Temperature
±25℃±5℃
Parabolic Coefficient
(-0.035±0.05)*10-6/℃2
Operating Temperature
-20~+70℃, -40~+85℃
Storage Temperature
-55~+125℃
Shunt Capacitance
0.8pF Typ.
Aging (at 25℃)
±3ppm at first year
Packing Unit
3000pcs. /Reel
Dimensions[mm]:
Send Message
Preview on Mobile
X
Wechat scan code or copy link mobile phone open
X
Copy the link

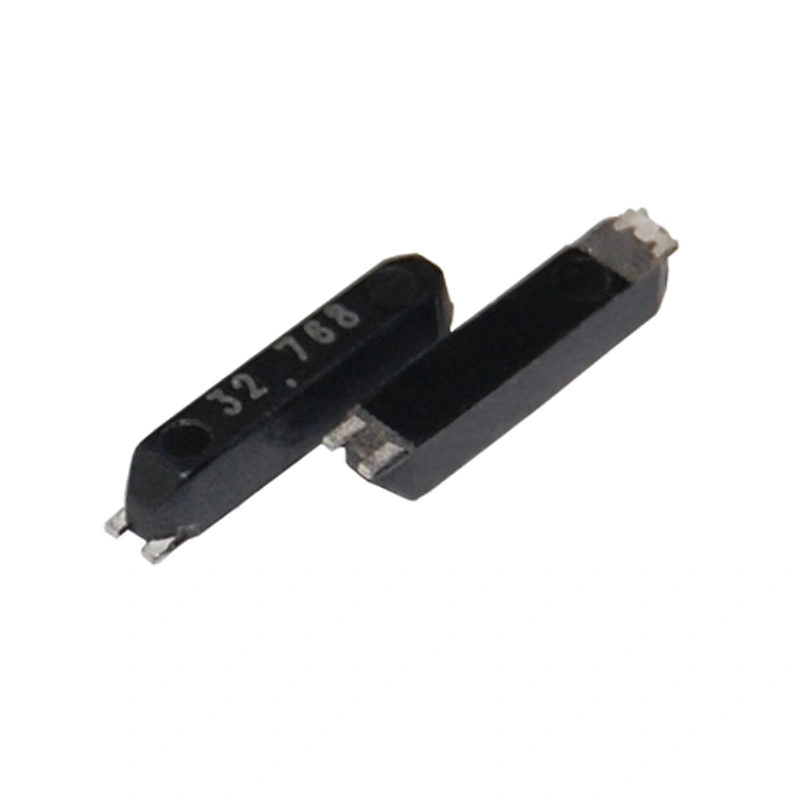

7M Series 32.768kHz SMD 7015 Crystal
