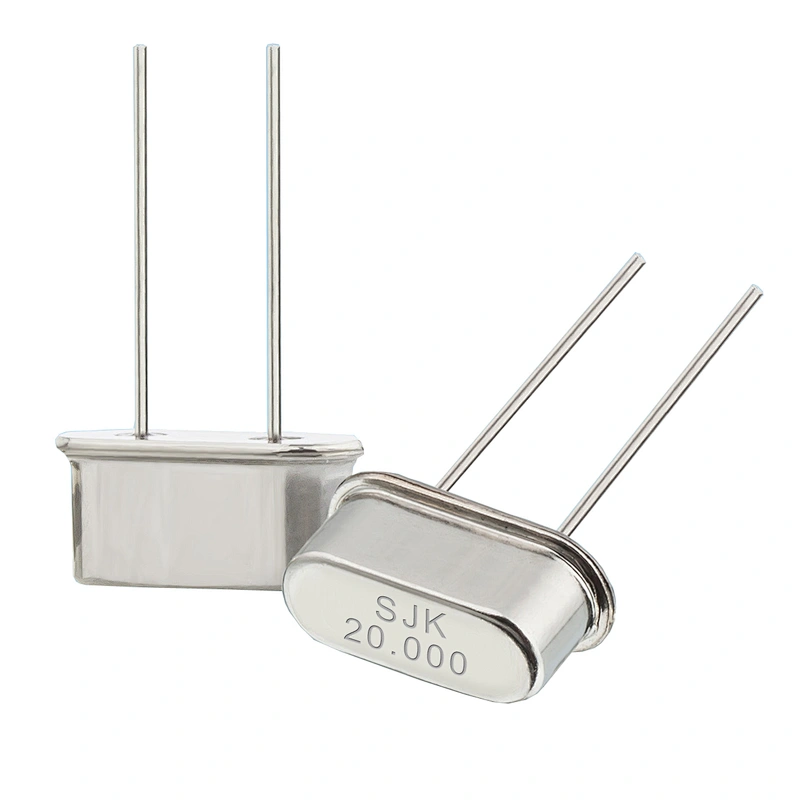

Features Of HC-49S Quartz Crystal Unit:
- Resistance welded type crystal units.
- A great number of standard frequencies.
- Wide Frequency from 3MHz to 100MHz.
- Offers excellent frequency pullability and lower equivalent series resistance.
- Lower cost and highly mass production capability.
- Application for PC, TV, Game equitment, Communications, Consumer device, Cable modem, etc.
- RoHS Compliant /Pb-Free.
Electrical Specifications Of HC-49S Quartz Crystal Units
| Item /Type | 6B (HC-49S Quartz Crystal Unit) |
| Frequency Range | 3~34 MHz | 27~100 MHz |
| Overtone Order | Fundamental | 3rd Overtone |
| Load Capacitance | 16pF, 20pF, 30pF, or specify |
| Frequency Tolerance | ±30ppm, or specify |
| Drive Level | 1~500μW Max. (100μW Typ.) |
| Series Resistance | 30~200Ω | 60~100Ω |
| Operating Temperature | -20~+70℃, -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
| Shunt Capacitance | 7pF Max. |
| Aging (at 25℃) | ±3ppm /Year Max. |
| Packing Unit | 200pcs. |
Dimensions[mm]
