Features Of SJK8008 Series Low Power MHz MEMS Programmable Oscillator
Frequency range from 1MHz to 110MHz
Excellent frequency stability as low as ±20ppm
Low power consumption of 3.5mA at 1.8V
Standby mode for longer battery life
Fast startup time of 5ms
LVCMOS/HCMOS output type

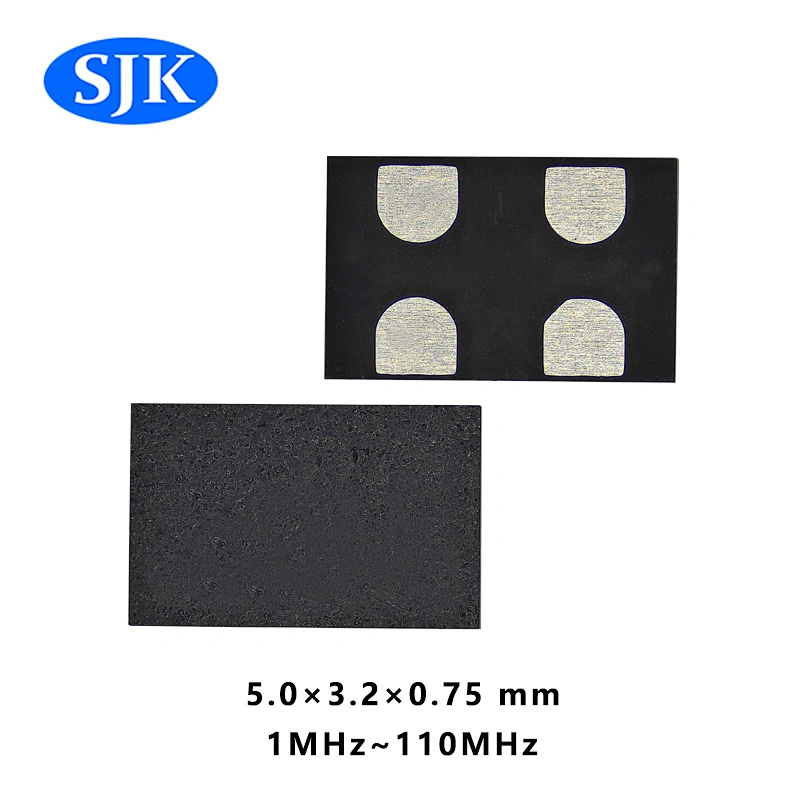

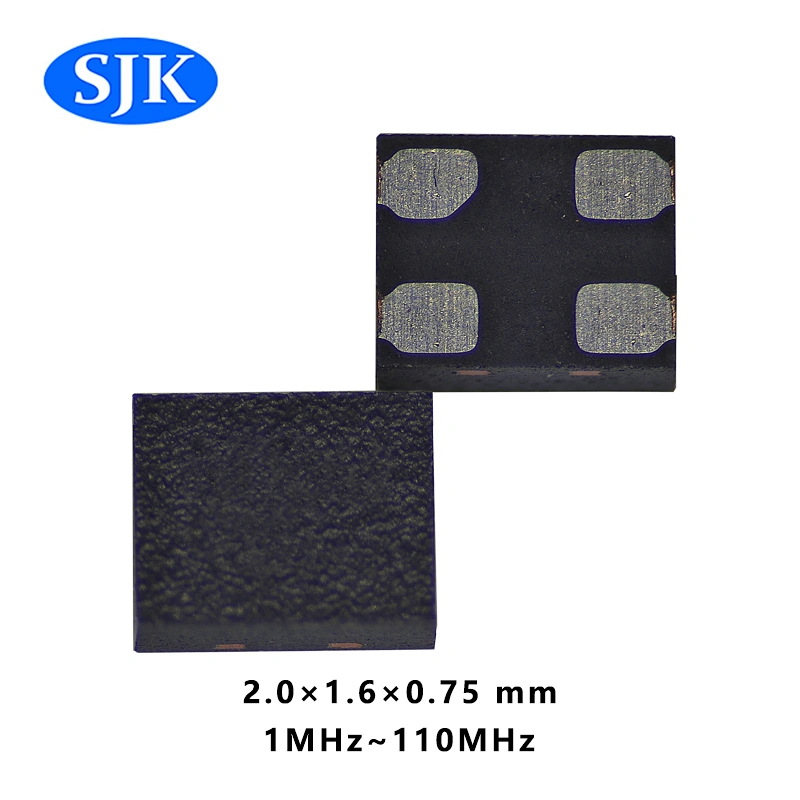

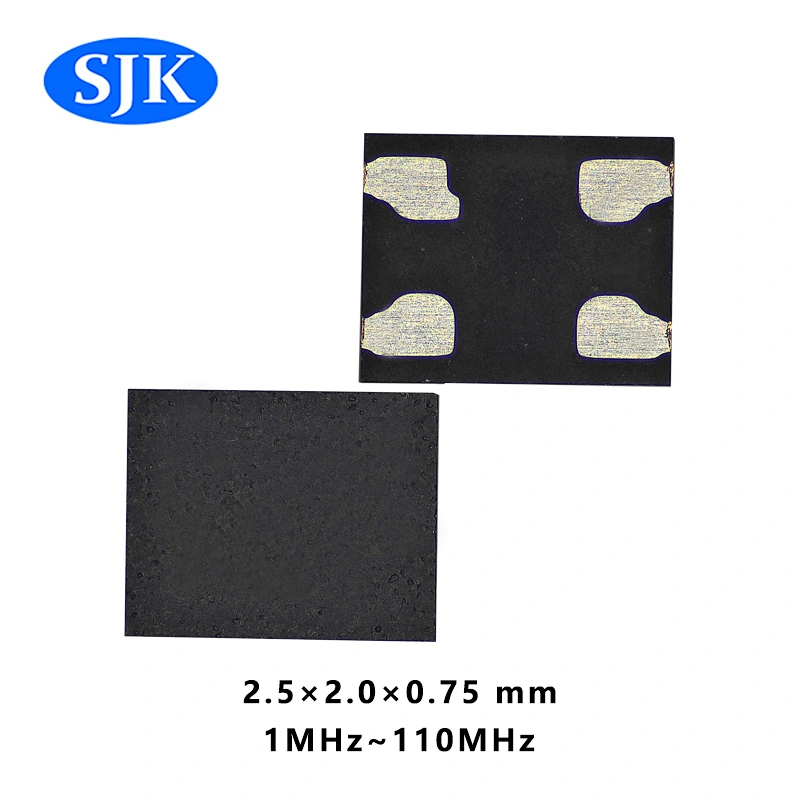

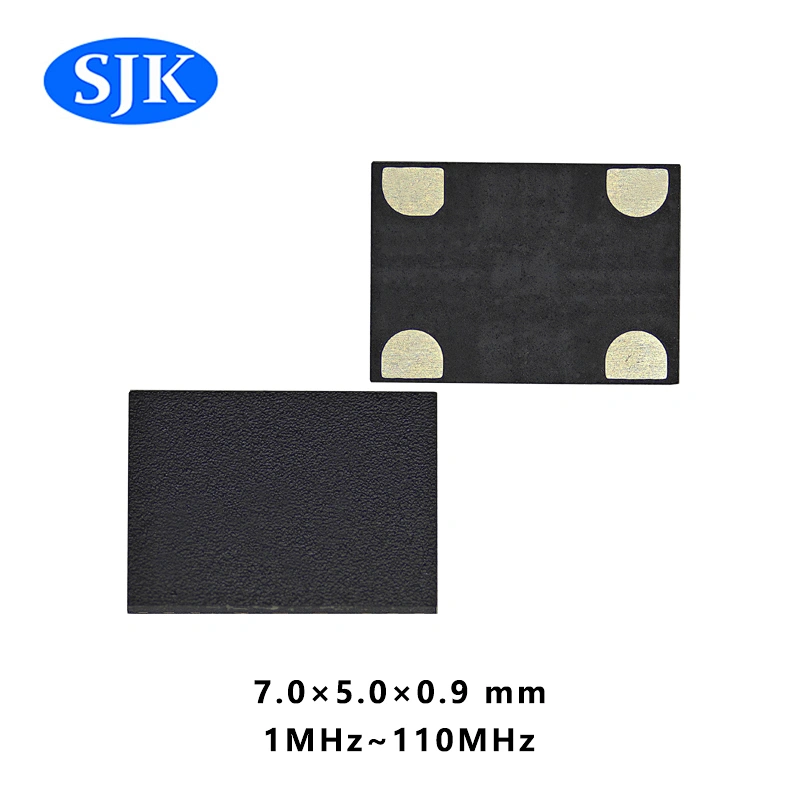

Size with 2.0×1.6, 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0 mm×mm
Automatic mounting and reflow soldering
Applications: DSC, Ethernet, USB, SATA, IP Cam, Medical electronics, Audio & Video, Data center, etc
RoHS Compliant /Pb Free
Electronical Specifications Of SJK8008 Series Low Power MHz MEMS Programmable Oscillator
Item/Type
SJK8008
Output Type
LVCMOS/HCMOS
Frequency Range
1~110MHz
Supply Voltage
1.8V~3.3V
Frequency Stability
±20ppm~±50ppm, or specify
Current Consumption
4.5mA Max.
Standby Current
4.3mA Max.
OE Disable Current
4.2mA Max.
Operating Temperature
-40~+85℃
Duty Cycle
45~55%
Rise/Fall Time
2.5ns Max.
Voltage Vol (Max.)/Voh (Min.)
10%Vcc /90%Vcc
Voltage Vil (Max.)/Vih (Min.)
30%Vcc /70%Vcc
Input Pull-up Impedance
150KΩ Max. (Pin1 Logic High)
2MΩ Min. (Pin1 Logic Low)
Start-up Time
5ms Max.
Enable/Disable Time
130ns Max.
Resume Time
5ms Max.
RMS Period Jitter
3pS Max.
Peak to Peak Period Jitter
30pS Max.
RMS Phase Jitter (12KHz~20MHz)
2pS Max.
Storage Temperature
-60~+150℃
Packing Unit
2016 /2520 /3225: 3000pcs./reel
5032 /7050: 1000pcs./reel
Pin Functions & Dimensions:
Pin Functions
Dimensions[mm]
