Features Of SJK8009 Series Low Power MHz MEMS Programmable Oscillator
Frequency range from 110MHz to 137MHz
Excellent frequency stability as low as ±20ppm
Low power consumption of 4.9mA at 1.8V
Standby mode for longer battery life
Fast startup time of 5ms
LVCMOS/HCMOS output type

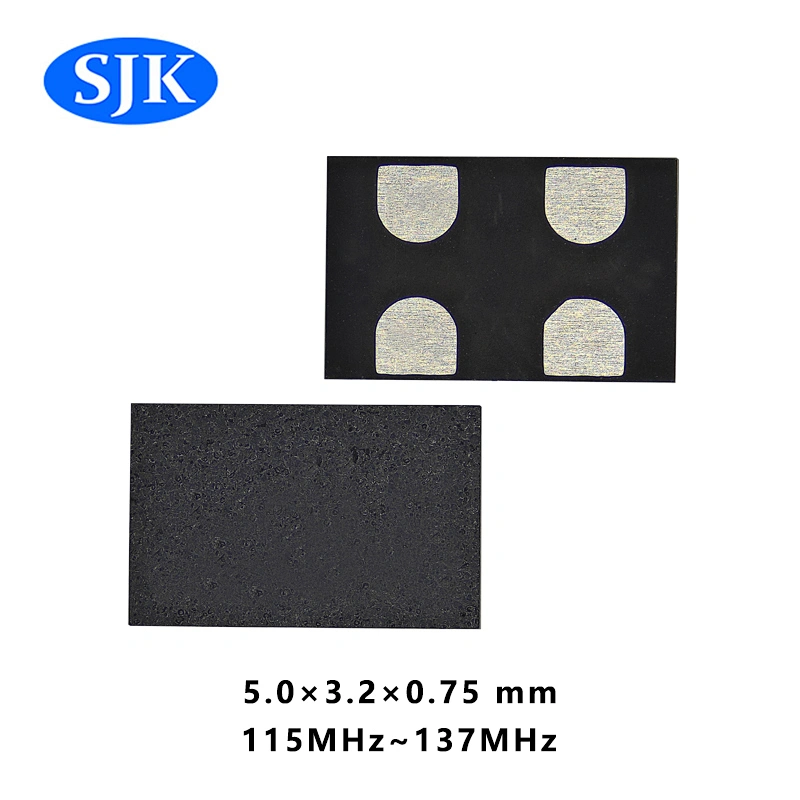

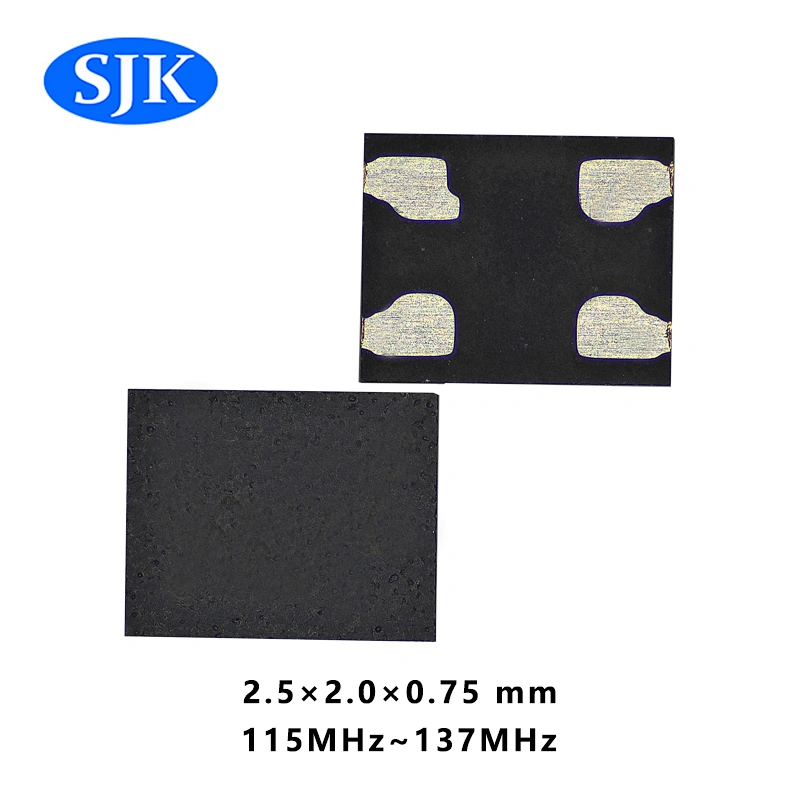

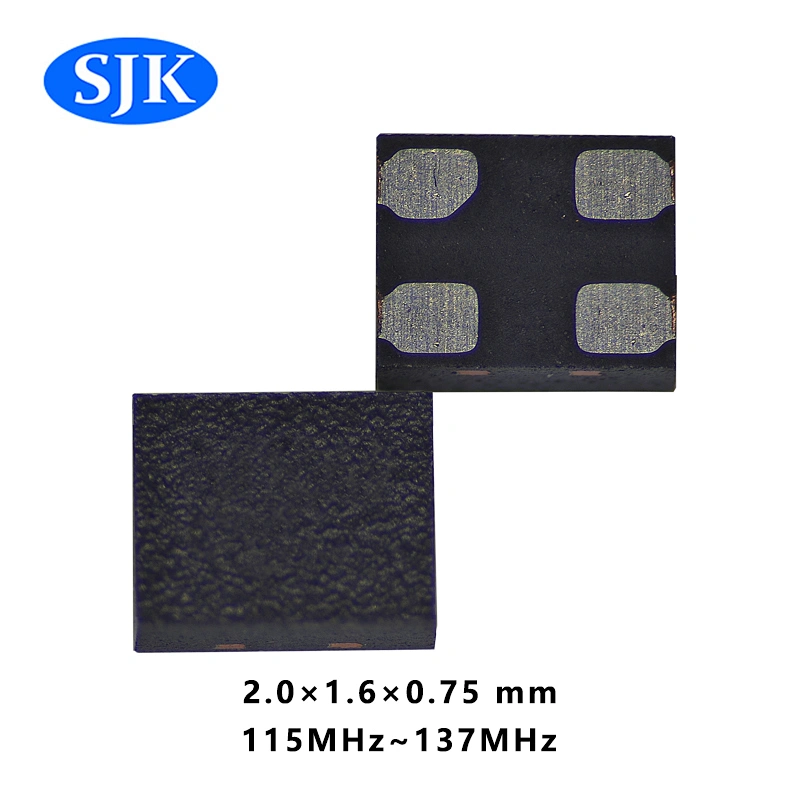

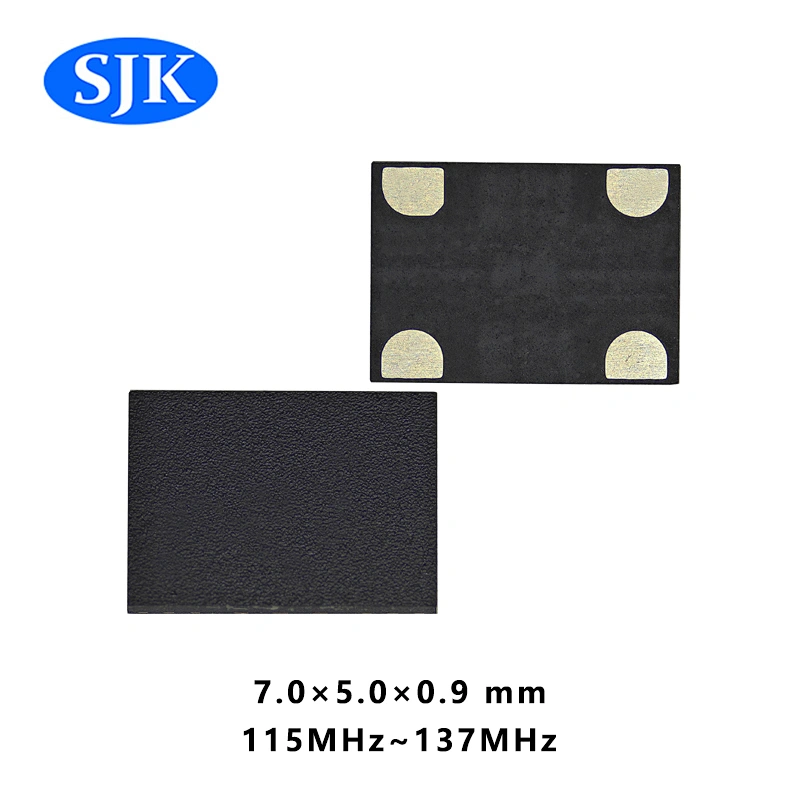

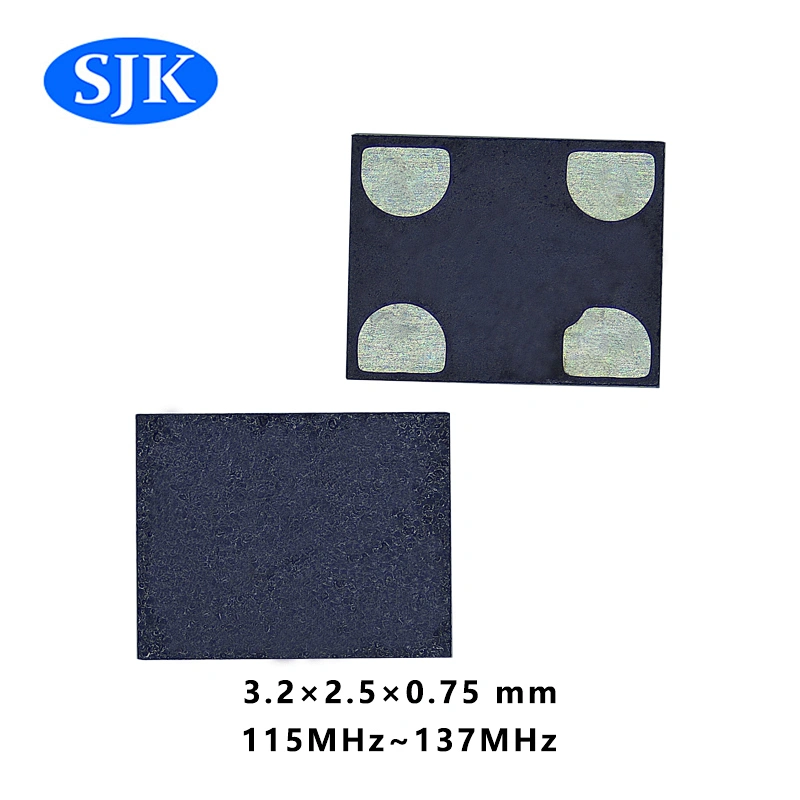

Size with 2.0×1.6, 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0 mm×mm
Automatic mounting and reflow soldering
Applications: DSC, Ethernet, USB, SATA, IP Cam, Medical electronics, Audio & Video, Data center, etc
RoHS Compliant /Pb Free
Electronical Specifications Of SJK8009 Series Low Power MHz MEMS Programmable Oscillator
| Item/Type | SJK8009 |
| Output Type | LVCMOS/HCMOS |
| Frequency Range | 115~137MHz |
| Supply Voltage | 1.8V~3.3V |
| Frequency Stability | ±20ppm~±50ppm, or specify |
| Current Consumption | 7.5mA Max. |
| Standby Current | 4.3mA Max. |
| OE Disable Current | 4.2mA Max. |
| Operating Temperature | -40~+85℃ |
| Duty Cycle | 45~55% |
| Rise/Fall Time | 2.5ns Max. |
| Voltage Vol (Max.)/Voh (Min.) | 10%Vcc /90%Vcc |
| Voltage Vil (Max.)/Vih (Min.) | 30%Vcc /70%Vcc |
| Input Pull-up Impedance | 150KΩ Max. (Pin1 Logic High) |
| 2MΩ Min. (Pin1 Logic Low) | |
| Start-up Time | 5ms Max. |
| Enable/Disable Time | 122ns Max. |
| Resume Time | 5ms Max. |
| RMS Period Jitter | 4pS Max. |
| Peak to Peak Period Jitter | 30pS Max. |
| RMS Phase Jitter (12KHz~20MHz) | 2pS Max. |
| Storage Temperature | -60~+150℃ |
| Packing Unit | 2016 /2520 /3225: 3000pcs./reel 5032 /7050: 1000pcs./reel |
Pin Functions & Dimensions:
Pin Functions
Dimensions[mm]
