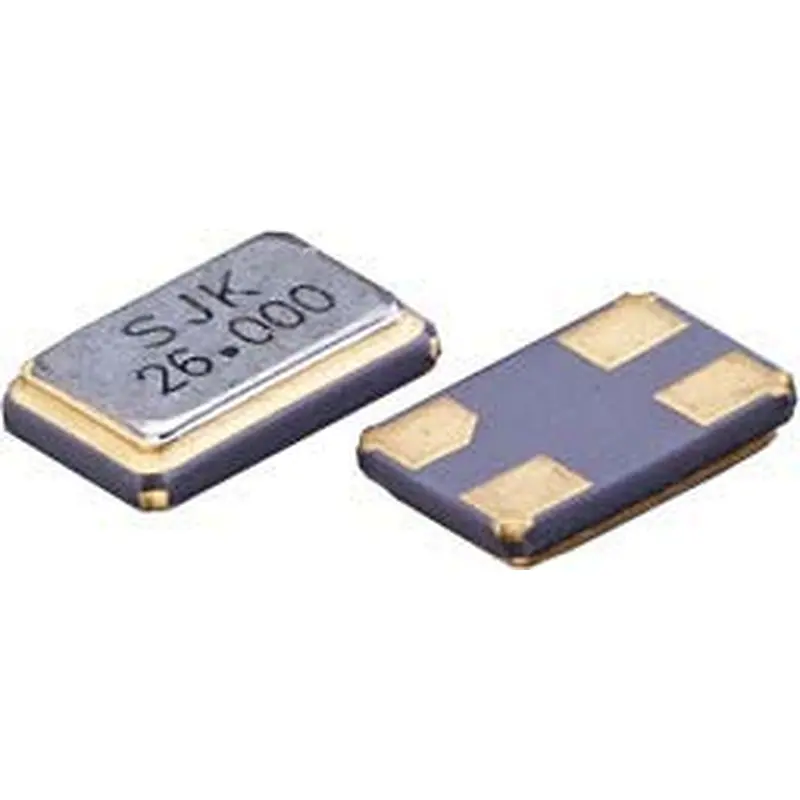

3225 size miniature and light weight SMD crystal resonator with a low profile of 0.7mm
High precision and high reliability
Offers a wide frequency range from 8MHz to 64MHz
Excellent heat resistance and environmental characteristics
Automatic mounting and reflow soldering
Applications: Small communication device, IoT, Wireless communications, BT, PDA, Cellular, etc.
RoHS Compliant /Pb-Free
Electrical Specifications Of 7U Series SMD 3225 Crystal Resonators
Item /Type
7U Series (SMD 3225 Crystal Resonators)
Frequency Range
8~16MHz
16~20MHz
20~64MHz
Overtone Order
Fundamental
Load Capacitance
8pF, 10pF, 12pF, or specify
Drive Level
1~200μW Max. (100μW Typ.)
Frequency Tolerance
±10ppm~±30ppm, or specify
Series Resistance
100Ω Max.
80Ω Max.
60Ω Max.
Shunt Capacitance
5pF Max.
Operating Temperature
-40~+85℃, or specify
Storage Temperatuer
-55~+125℃
Aging (at 25℃)
±3ppm /Year Max.
Packing Unit
3000pcs. /Reel
Dimensions[mm]
