6035 size miniature SMD crystal resonator with a low proflie of 1.2mm
Wide frequency range from 8MHz up to 100MHz
High precision and high reliability
4 Pads package
Automatic mounting and reflow soldering
Applications: Automotive applications, Server, Radio communications, PDA, FA, GPS, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 6GB Series SMD 6035 Crystal Units
Item /Type
6GB Series (SMD 6035 Crytal Units)
Frequency Range
8~10MHz
10~12MHz
12~40MHz
40~100MHz
Overtone Order
Fundamental
3rd Overtone
Load Capacitance
10pF, 16pF, 20pF, or specify
Drive Level
1~200μW Max. (100μW Typ.)
Frequency Tolerance
±10ppm, ±20ppm ,±30ppm, or specify
Series Resistance
150Ω Max.
80Ω Max.
50Ω Max.
70Ω Max.
Shunt Capacitance
5pF Max.
Operating Temperature
-20~+70℃, -40~+85℃, or specify
Storage Temperature
-55~+125℃
Aging (at 25℃)
±3ppm /Year Max.
Packing Unit
1000pcs./Reel
Dimensions[mm]
Send Message
Preview on Mobile
X
Wechat scan code or copy link mobile phone open
X
Copy the link

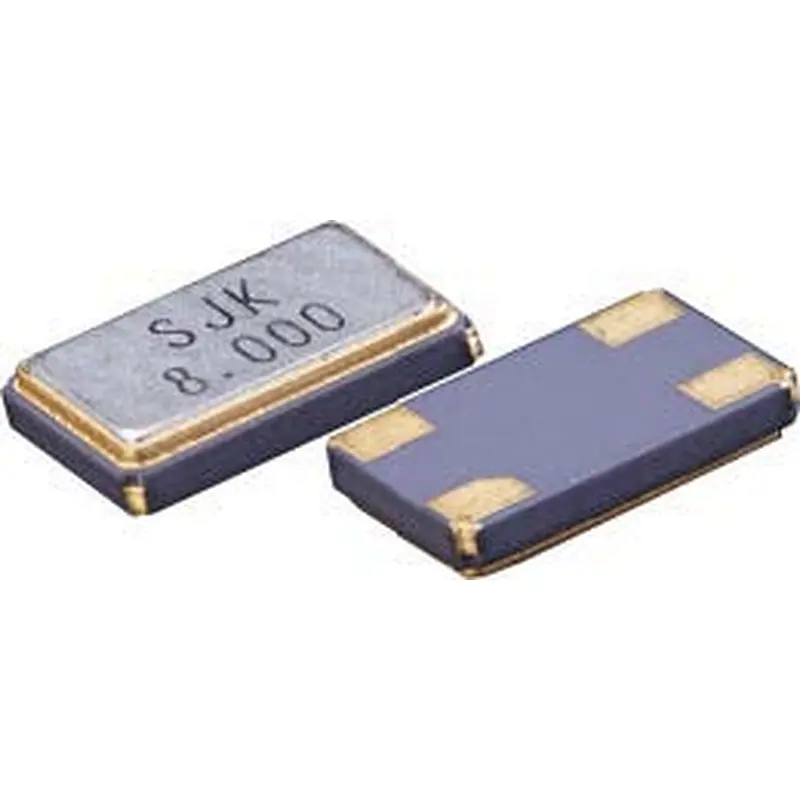

6GB Series SMD 6035 Crystal Resonators
