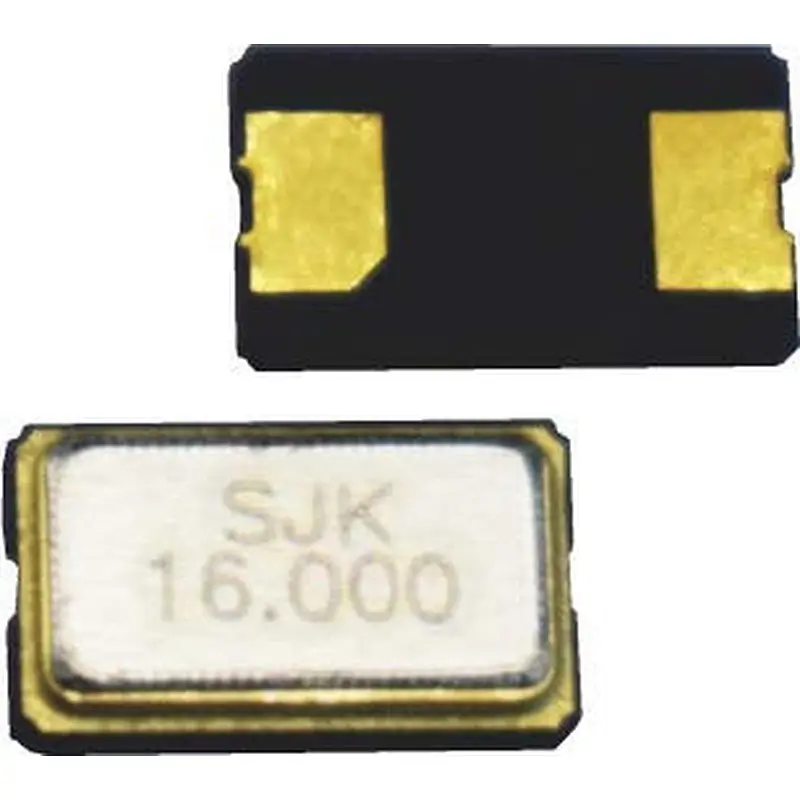

6035 size miniature SMD crystal unit with a low profile of 1.0mm
Wide frequency range from 8MHz up to 100MHz
High precision and high reliability
2 pads package
Automatic mounging and reflow soldering
Applications: Automotive applications, Server, PC, PDA, Telecommunications, Radio communications, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 6GA Series SMD 6035 Crystal Units
Item /Type
6GA Series (SMD 6035 Crystal Units)
Frequency Range
8~10MHz
10~12MHz
12~40MHz
40~100MHz
Overtone Order
Fundamental
3rd Overtone
Drive Level
1~200μW Max. (100μW Typ.)
Load Capacitance
10pF, 16pF, 20pF, or specify
Frequency Tolerance
±10ppm, ±20ppm, ±30ppm, or specify
Series Resistance
150Ω Max.
80Ω Max.
50Ω Max.
70Ω Max.
Shunt Capacitance
5pF Max.
Operating Temperature
-20~+70℃, -40~+85℃, or specify
Storage Temperature
-55~+125℃
Aging (at 25℃)
±3ppm /Year Max.
Packing Unit
1000pcs./Reel
Dimensions[mm]
