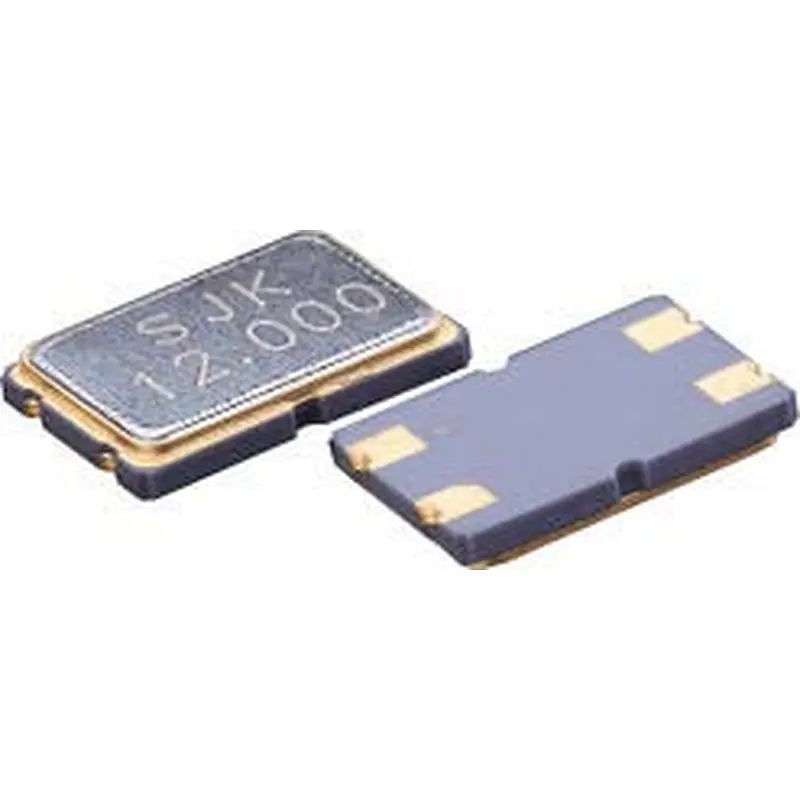

7050 size miniature SMD crystal resonator with a low profile of 1.0mm
Wide frequency range from 6MHz up to 160MHz
High precision and high reliability
Automatic mounting and reflow soldering
Applications: PC, DSC, High speed network, GPS, Server, ADSL, cordless telephone, etc.
RoHS Compliant /Pb-Free
Electrical Specifications Of 6F Series SMD 7050 Crystal Resonators
Item /Type
6F Series (SMD 7050 Crystal Resonators)
Frequency Range
6~10MHz
10~30MHz
30~100MHz
100~160MHz
Overtone Order
Fundamental
3rd Overtone
Load Capacitance
16pF, 20pF, 30pF, or specify
Drive Level
1~200μW Max. (100μW Typ.)
Frequency Tolerance
±10ppm~±50ppm, or specify
Series Resistance
100Ω Max.
60Ω Max.
90Ω Max.
100Ω Max.
Shunt Capacitance
5pF Max.
Operating Temperature
-20~+70℃, -40~+85℃, or specify
Storage Temperature
-55~+125℃
Aging (at 25℃)
±3ppm /Year Max.
Packing Unit
1000pcs./Reel
Dimensions[mm]
