Features Of 1N Series SMD 2016 Crystal Oscillators
2016 size, low profile of 0.75mm, extremely small SMD crystal oscillators
CMOS output.
Low voltage operation: 1.8~3.3V
Frequency range: 4MHz to 54MHz
3-state function
High reliable environmental performance
Low Current consumption
Automatic mounting and reflow sodlering
Applications: Wireless communications, GPS, Cellular, Phone, Car applications, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 1N Series SMD 2016 Crystal Oscillators
| Item /Type | 1N (SMD 2016 Crystal Oscillators) |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Supply Voltage | 3.3V (1.8V, 2.5V, available) |
| Frequency Range | 4~54MHz |
| Frequency Stability | ±25ppm, ±50ppm, or specify |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vdd /0.9Vdd |
| Rise (Tr) /Fall (Tf) Time | 5ns Max. |
| Supply Current | 5mA Max. |
| Symmetry | 45~55% |
| Start-up Time | 5ms Max. |
| Period Jitter | 40 pSec |
| Phase Jitter | 1 ps Max. |
| Aging (at 25℃) | 3ppm /Year Max. |
| Packing Unit | 3000pcs. /Reel |
Dimensions[mm]
Wechat scan code or copy link mobile phone open
X

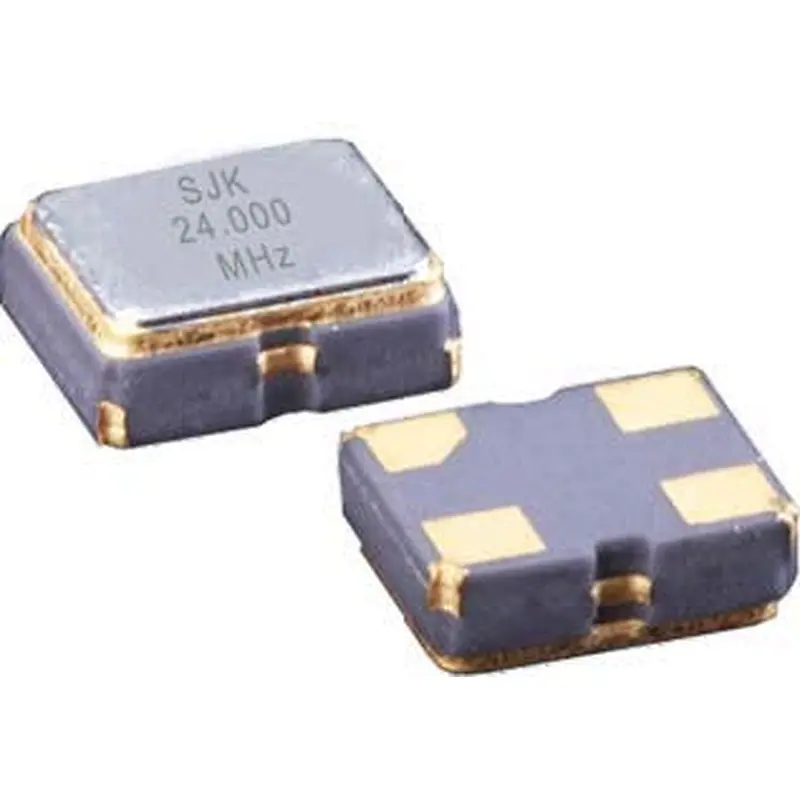

1N SMD 2016 Crystal Oscillators
