Features Of 2N Series SMD 2520 Crystal Oscillators

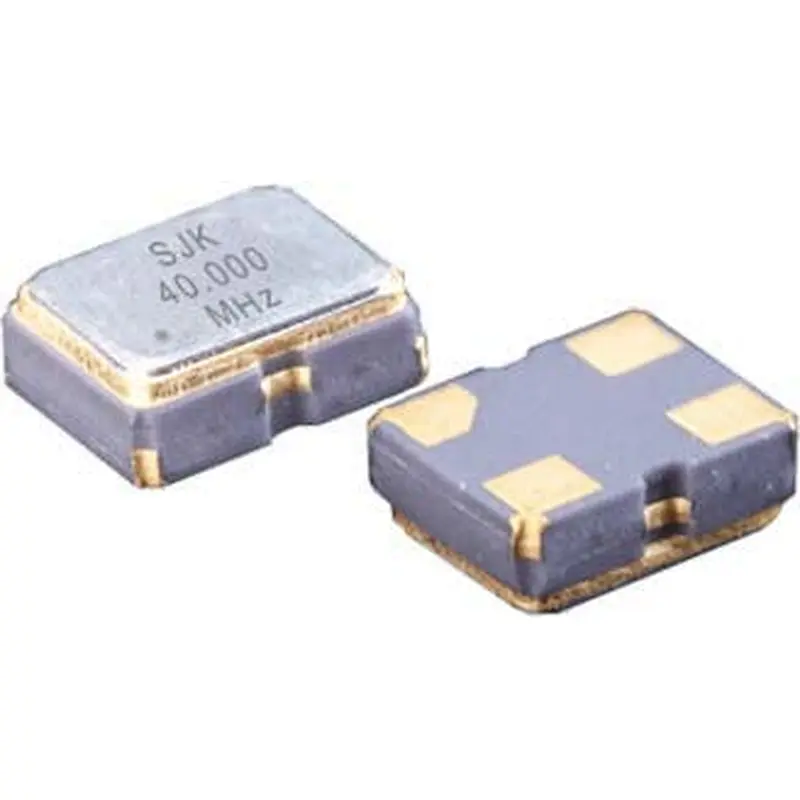

2520 size, low profile of 0.8mm, extremely small SMD crystal oscillators
CMOS output.
Low voltage operation: 1.8~3.3V
Frequency range: 4MHz to 75MHz
3-state function
High reliable environmental performance
Low Current consumption
Automatic mounting and reflow sodlering
Applications: Wireless communications, GPS, WLAN, Cellular, Phone, Car applications, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 2N Series SMD 2520 Crystal Oscillators
| Item /Type | 2N (SMD 2520 Crystal Oscillators) |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Supply Voltage | 3.3V (1.8V, 2.5V, available) |
| Frequency Range | 4~75MHz |
| Frequency Stability | ±25ppm, ±50ppm, or specify |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vdd /0.9Vdd |
| Rise (Tr) /Fall (Tf) Time | 5ns Max. |
| Supply Current | 10mA Max. |
| Symmetry | 45~55% |
| Start-up Time | 5ms Max. |
| Period Jitter | 40 pSec |
| Phase Jitter | 1 ps Max. |
| Aging (at 25℃) | ±3ppm /Year Max. |
| Packing Unit | 3000pcs. /Reel |
Dimensions[mm]
