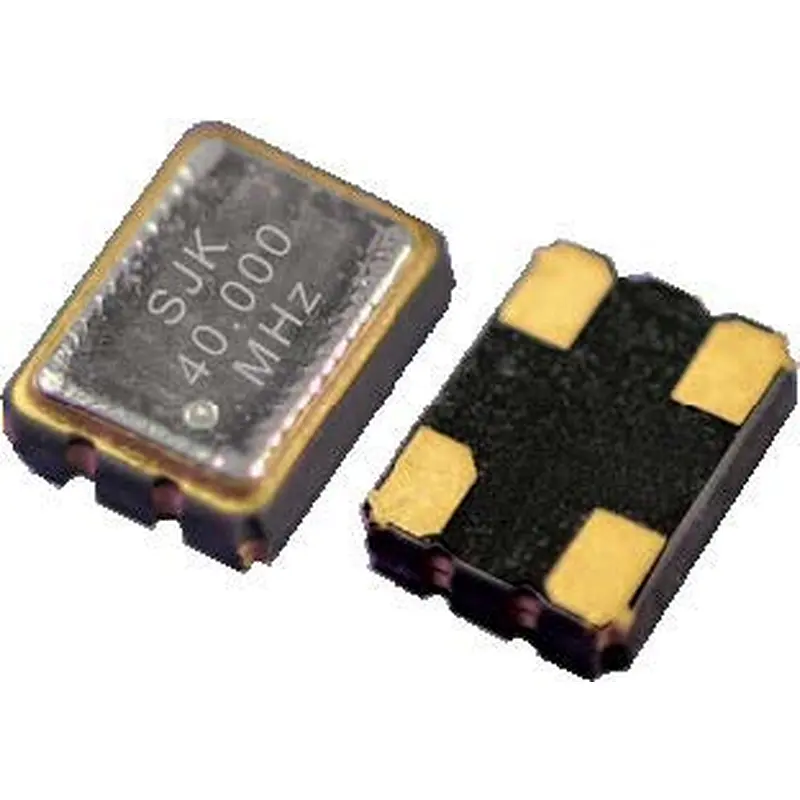

Features Of 7T Series SMD 3225 TCXO
LVCMOS output logic, frequency range from 10MHz to 60MHz
3225size, 1.0mm high SMD TCXO
Low voltage operatios: 1.8V, 2.5V, 2.8V, 3.3V
Frequency stability: ±2.5ppm~±5ppm
3-state function
Automatic mounting and reflow soldering
Applications: Mobile phone, Wireless communications, IoT, GPS, WLAN, and more
RoHS Compliant /Pb-Free
Electrical Specifications Of 7T Series SMD 3225 TCXO
| Item /Type | 7T (SMD 3225 TCXO) | ||
| Output Type | CMOS | ||
| Output Load | 15pF, or specify | ||
| Supply Voltage | 1.8~3.3V | ||
| Frequency Range | 10~60MHz | ||
| Supply Current | 10mA Max. | ||
| Output Level | 0.1Vcc /0.9Vcc | ||
| Frequency Stability | Tolerance | ±2.0ppm Max. (after 2 reflows ) | |
| vs Temperature | ±2.5ppm~±5ppm | ||
| vs Aging | ±1.0ppm Max./Year | ||
| Duty Cycle | 45~55% | ||
| RMS Phase Jitter | 1pS Max. | ||
| Rise /Fall Time | 8ns Max. | ||
| Start-up Time | 5ms Max. | ||
| Operating Temperature | -40~+85℃, or specify | ||
| Phase Noise @26MHz | 100Hz | -110dBc/Hz | |
| 1KHz | -130dBc/Hz | ||
| 10KHz | -145dBc/Hz | ||
| Packing Unit | 3000pcs./Reel | ||
Dimensions[mm]
