Features Of 5T Series SMD 5032 VCTCXO/TCXO
Typical 5.0×3.2×1.5mm ceramic SMD package.
CMOS and clipped sine wave (without DC-cut capacitor) output.
Output frequency range: 10MHz to 52MHz
Temperature stability: ±0.05ppm~±0.5ppm
VCTCXO available
Automatic mounting and reflow soldering
Applications: Base station, Stratum 3, Femtocell, WLAN, Wireless communications, etc
RoHs Compliant /Pb-Free
Electrical Specifications Of 5T Series SMD 5032 VCTCXO/TCXO
| Item /Type | 5T Series (SMD 5032 VCTCXO/TCXO) |
| Output Type | Clipped Sine wave | CMOS |
| Output Load | 10KΩ//10pF | 15pF, or specify |
| Frequency Range | 10~52MHz |
| Supply Voltage | 3.3V /5.0V |
| Supply Current | 3.5mA Max. | 8mA Max. |
| Output Level | 0.8Vp-p Min. | 0.1Vcc/0.9Vcc |
| Frequency Stability | Tolerance | ±2.0ppm Max. |
| vs Temperature | ±0.05ppm~±0.5ppm |
| vs Supply Voltage (Vcc±5%) | ±0.3ppm Max. |
| vs Load (Load varies±10%) | ±0.2ppm Max. |
| vs Aging | ±1.0ppm Max. |
| Auto Frequency Control (AFC) Range (VCTCXO) | ±5ppm~±10ppm (1.5±1V) |
| Strart-up Time | 2ms Max. |
| Operature Temperature | -40~+85℃, or specify |
| Duty Cycle | | 45~55% |
| Phase Noise @10MHz | 100KHz | -125dBc/Hz |
| 1KHz | -145dBc/Hz |
| 10KHz | -150dBc/Hz |
| Packing Unit | 1000pcs./Reel |
Dimensions[mm]
Wechat scan code or copy link mobile phone open
X

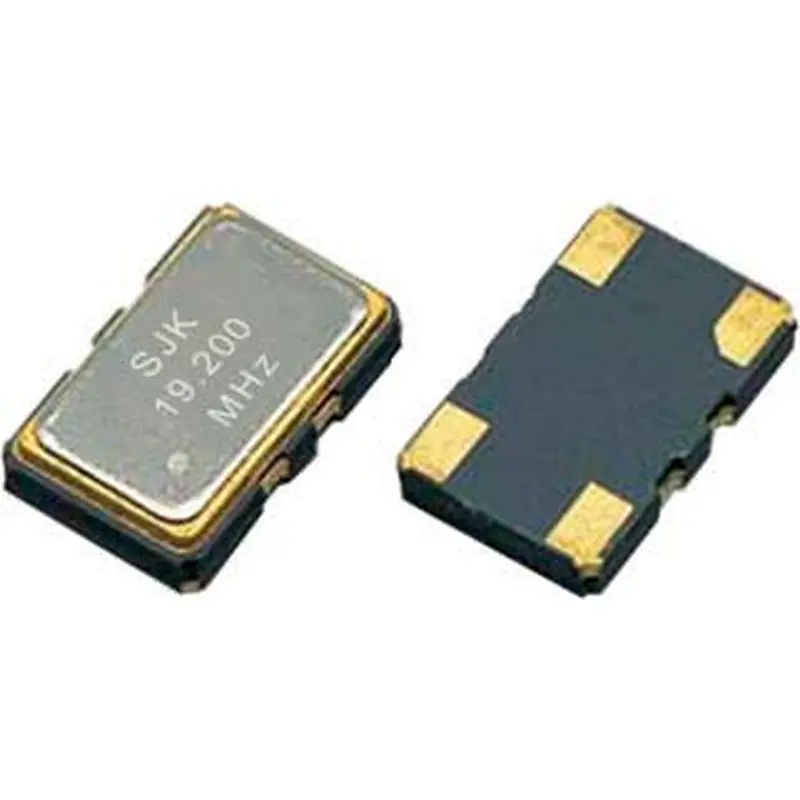

5T Series SMD 5032 VCTCXO
