Applications: Large-scale equipment, Avionics, Military communication equipment, Test equipment, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 6T Series DIP TCXO/VCTCXO
Item /Type
9T Series (SMD VCTCXO/TCXO)
Output Type
Clipped Sine wave
CMOS
Output Load
10KΩ//10pF
15pF, or specify
Frequency Range
10~52MHz
1.25~52MHz
Supply Voltage
2.8V /3.3V
Supply Current
4mA Max.
25mA Max.
Output Level
0.8Vp-p Min.
0.1Vcc/0.9Vcc
Frequency Stability
Tolerance
±2.0ppm Max. (after 2 reflows)
vs Temperature
±0.5ppm~±1.0ppm
vs Supply Voltage (Vcc±5%)
±0.2ppm Max.
vs Load (Load varies±10%)
±0.2ppm Max.
vs Aging
±1.0ppm Max.
Auto Frequency Control (AFC) Range (VCTCXO)
±5ppm~±10ppm (1.5±1V)
Strart-up Time
2ms Max.
Operature Temperature
-40~+85℃, or specify
Duty Cycle
40~60%
Phase Noise @10MHz
100KHz
-1115dBc/Hz
1KHz
-135dBc/Hz
10KHz
-148dBc/Hz
Packing Unit
100pcs.
Dimensions[mm]
Send Message
Preview on Mobile
X
Wechat scan code or copy link mobile phone open
X
Copy the link
6T Series 14-Pin TCXO/VCTCXO
6T Series 14-Pin TCXO/VCTCXO
0.00~0.00

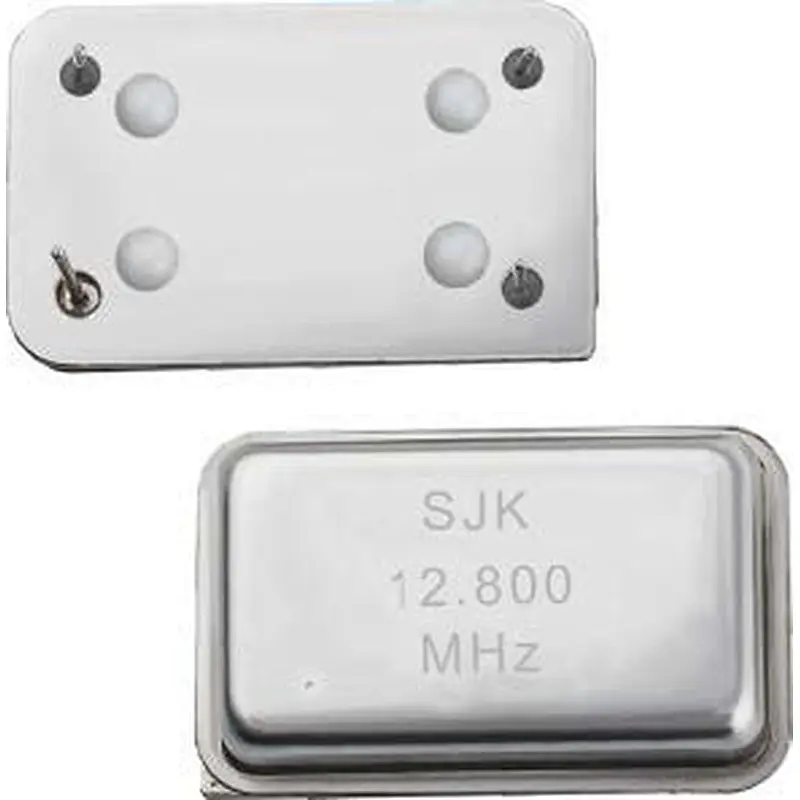

6T Series 14-Pin TCXO/VCTCXO Model: 6T Series (DIP TCXO) Frequency range: 1.25MHz~52MHz Supply voltage: 2.8V/3.3V Frequency stability: ±0.5ppm~±1.0ppm Size: 20.4×12.8×7.8mm Applications: Large-scale equipment, Military communication equipment, Avionics, etc
