Features Of 6X Series DIP Thru-hole OCXO
OCXO (Oven Controlled Crystal Oscillator)

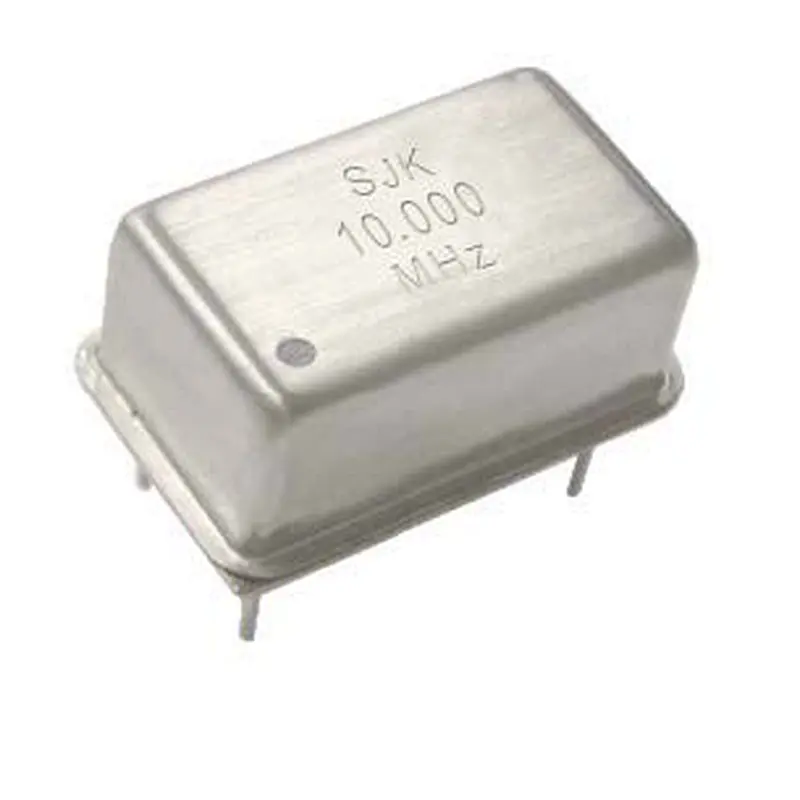

Typical 36.3×27.2×12.7mm DIP Thru-hole OCXO
Frequency range from 5MHz to 100MHz
±3ppb frequency stability over -40~+85℃
Stratum 3 (Overall ±0.3ppm including 10 years aging)
Very fast warm-up and accurate stability
Applications: Base station, Digital switch, Test equipment, Measurin equipment, SDH, SONET, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 6X Series DIP Thru-hole OCXO
| Item /Type | 6X Series (DIP Thru-hole OCXO) | ||
| Output Type | LVTTL/Sine wave | ||
| Output Load | 15pF, or specify | ||
| Output Wave Form | Rectangular | ||
| Supply Voltage | 3.3V/5.0V | 12V | |
| Frequency Range | 5~40MHz | 10~100MHz | |
| Operating Temperature | -40~+85℃, or spcify | ||
| Frequency Stability | Frequency Tolerance | ±5ppb Max. | |
| vs. Operating Temperature | ±3ppb~±10ppb | ||
| vs. Supply Voltage | ±0.5ppb Max. (±5 Change) | ||
| vs. Load | ±0.5ppb Max. (±10 Change) | ||
| vs Aging | ±0.5ppb /Daily, ±50ppb/Year, ±0.3ppm/10 years | ||
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vcc/0.9Vcc | ||
| Duty Cycle | 45~55% | ||
| Spurious | -60dBc | ||
| Warm-up | ±10ppb (In 10 minutes @+25, referenced to 1 hour) | ||
| Power Consumption (Steady state) | 1.3W Max. | ||
| Frequency Adjustment Range | ±0.5ppm (+2.5V±2.5V/+5V±5) | ||
| Phase Noise @20MHz | @10Hz | -120dBc/Hz | |
| @100Hz | -135dBc/Hz | ||
| @1KHz | -145dBc/Hz | ||
| @10KHz | -150dBc/Hz | ||
| Packing Unit | 100pcs. | ||
Dimensions[mm]
