Electrical Specifications For ZTA Series Ceramic Resonators:
Part Number
Frequency Range (MHz)
Frequency Accuracy (at 25℃)
Frequency Stability
Operating Temperature
Aging For Ten Year (%)
ZTA...MG
1.79~6.00
±0.5%
±0.3%
-25~+85℃
±0.3
ZTAWS...MG
1.79~6.00
±0.5%
±0.3%
-25~+85℃
±0.3
ZTALS...MG
3.00~8.00
±0.5%
±0.3%
-25~+85℃
±0.3
ZTARS...MG
3.00~10.00
±0.5%
±0.3%
-25~+85℃
±0.3
ZTA...MT
6.00~13.00
±0.5%
±0.3%
-25~+85℃
±0.3
ZTA...MX
12.00~60.00
±0.5%
±0.3%
-25~+85℃
±0.3
Dimensions[mm]:
Send Message
Preview on Mobile
X
Wechat scan code or copy link mobile phone open
X
Copy the link

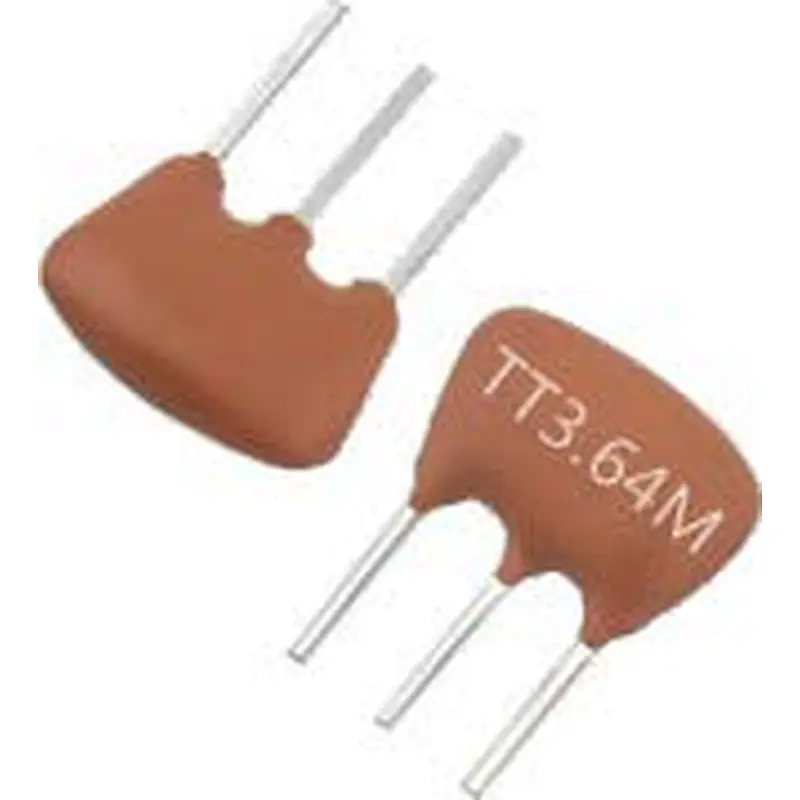

ZTA Series DIP
ZTA Series DIP
0.00~0.00
ZTA Series DIP Model: ZTA Series For DIP Type Frequency range: 1.79~60MHz Size: 10×7.5×5.0 mm Applications: Security, Consumer device, TV, Radio, PC, etc.
