Features Of LT Series Ceramic Filter:
Excellent spurious suppression characteristics within video signal band
Available 4 pass bandwidth variation to meet various requests
Low profile (H=10.0mm Max.)
Applications: TV, VCR stage, etc
RoHS Compliant
Electrical Specifications For LT Series Ceramic Filter
| Part Number | Center Frequency (MHz) | 3dB Band Width (KHz) Min | 20dB Band Width (KHz) Max | Insertion Loss (dB) Min | Spurious Attenuation (9~12MHz) (dB) Min. | Input-Output Impedance (Ω) |
|
| LT4.5MB | 4.500 | fo±60 | 530 | 6.0 | 20(4.5±1MHz) | 1000 |
| LT5.5MB | 5.500 | fo±75 | 550 | 6.0 | 25(5.5±1MHz) | 600 |
| LT6.0MB | 6.000 | fo±80 | 600 | 6.0 | 25(6.0±1MHz) | 470 |
| LT6.5MB | 6.500 | fo±80 | 630 | 6.0 | 25(6.5±1MHz) | 470 |
Dimensions[mm]
Wechat scan code or copy link mobile phone open
X
LT Ceramic Filter
LT Ceramic Filter
0.00~0.00

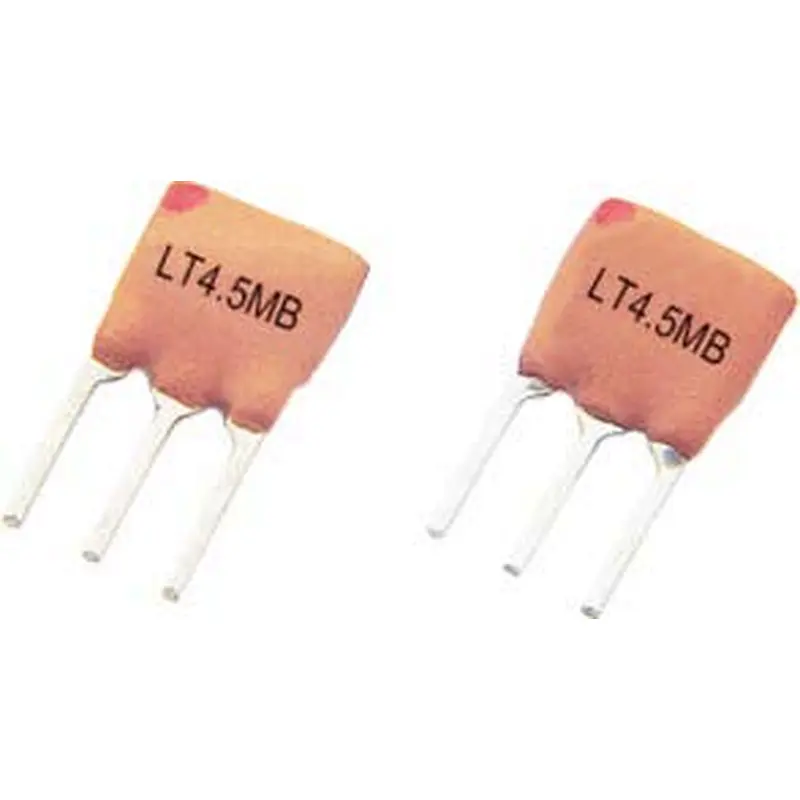

LT Ceramic Filter Model: LT Series Ceramic Filter
Frequency: 4.5MHz, 5.5MHz, 6.0MHz, 6.5MHz
Size: 10×10×5.0 mm
Applications: TV, VCR stage, etc
