Features For XT Series Ceramic Trap Filters
TV SIF stage use
Low insertion loss
Wide bandwidth ceramic trap
Excellent spurious suppression characteristics
Frequency range from 3.58MHz to 6.5MHz
RoHS Compliant
Electrical Specifications For XT Series Ceramic Trap Filters
| Part Number | Trap Attenuation (at nominal frequency) (dB) | 20dB Attenuation Band Width (KHz) | 20dB Attenuation Band Width (KHz) |
| XT3.58MB | 25 | | ≧40(70) |
| XT4.43MB | 30 | | ≧50(80) |
| XT4.5MB | 35 | | ≧70(120) |
| XT5.5MB | 35 | | ≧90(120) |
| XT5.74MB | 35 | | ≧90(120) |
| XT6.0MB | 20 | | ≧90(120) |
| XT6.5MB | 20 | | ≧90(120) |
| XT4.5MB | 20 | ≧30 | 35 |
| XT5.5MB | 20 | ≧30 | 20 |
Dimensions[mm]
Wechat scan code or copy link mobile phone open
X

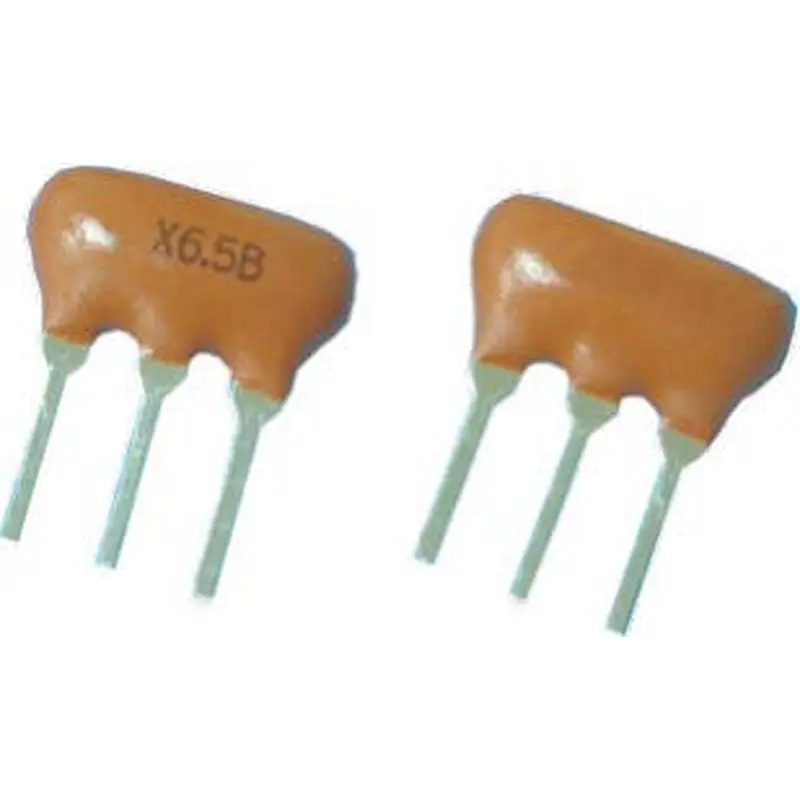

XT Ceramic Trap Filters
XT Ceramic Trap Filters
0.00~0.00
XT Ceramic Trap Filters Model: XT Series Ceramic Trap Filters
Frequency range: 3.58~6.5MHz
Size: 8×8×5
Applications: Receiver, TV, Video player, Consumer device
